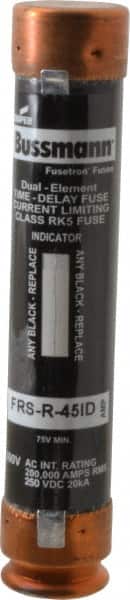

Cooper Bussmann - 250 VDC, 600 VAC, 45 Amp, Time Delay General Purpose Fuse - Fuse Holder Mount, 5-1/2" OAL, 20 at DC, 200 (RMS) kA Rating, 27mm Diam
Item #: 91700401
Brand: Cooper Bussmann
Model #: FRS-R-45ID
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Time delay fuses, also known as duel-element fuses, are designed to allow for a surge in electricity during a short time before overloading or shorting out. They can protect equipment from overload and allow for greater starting amperage.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | RK5 |
| Amperage | 45 |
| Voltage | 250 VDC; 600 VAC |
| Fuse Timing | Time Delay |
| Fuse Body Type | Cartridge |
| Overall Length (mm) | 139.70 |
| Overall Length (Inch) | 5-1/2 |
| Overall Length (Decimal Inch) | 5.5000 |
| Overall Diameter (mm) | 27.00 |
| Overall Diameter (Decimal Inch) | 1.0600 |
| Number of Elements | 2 |
| Mounting Type | Fuse Holder |
| Indicating Information | Indicating |
| Interrupting Rating (kA) | 20 @ DC; 200 (RMS) |
| Standards Met | CE Certified; CSA C22.2 No. 248.12 Class 1422-02 File 53787 Certified; UL Listed 248-12 Class RK5 Guide JDDZ File E4273 |
