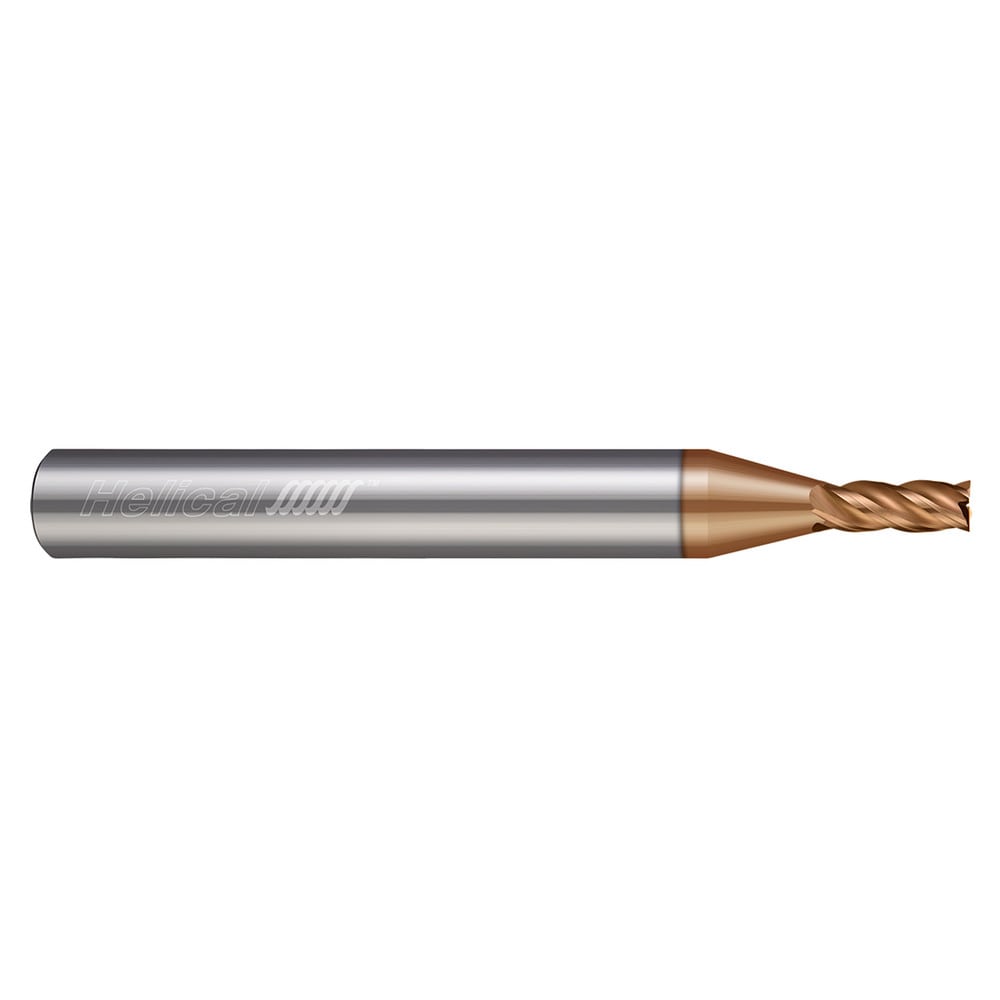

Square End Mill: 4 Flute, Solid Carbide
Item #: 84052760
Brand: Helical Solutions
Model #: 88162
Product Specifications
| Mill Diameter (Decimal Inch) | 0.2812 |
| Mill Diameter (Inch) | 9/32 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.4375 |
| Length of Cut (Inch) | 7/16 |
| Shank Diameter (Inch) | 5/16 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Single Or Double End | Single |
| Coating/Finish Family | Tplus |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 35 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Coating/Finish | Tplus |
| Variable Helix | No |
| Variable Index | Yes |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Straight |
| Material Grade | Solid Carbide |
| Series | End Mills for Stainless & High Temp - 4 Flute - Square - Variable Pitch |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
