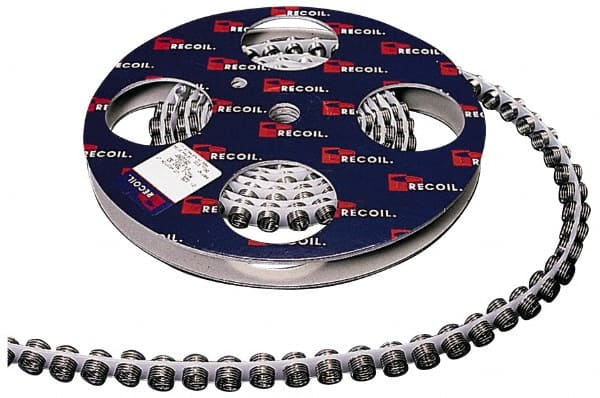

Recoil - Screw-Locking Inserts; Thread Size: #6-32 ; Overall Insert Length (Decimal Inch): 0.2760 ; Tang: Yes ; Tang: Tangless ; Length to Diameter Ratio: 2D ; Length to Diameter Ratio: 2D
Item #: 91906081
Brand: Recoil
Model #: 13564DSF
Product Specifications
Screw-Locking Inserts; Thread Size: #6-32 ; Overall Insert Length (Decimal Inch): 0.2760 ; Tang: Yes ; Tang: Tangless ; Length to Diameter Ratio: 2D ; Length to Diameter Ratio: 2D
| Thread Size | #6-32 |
| Overall Insert Length (Decimal Inch) | 0.2760 |
| Tang | Yes |
| Tang | Tangless |
| Length to Diameter Ratio | 2D |
| Number of Inserts | 1,000 |
| Minimum Outside Diameter (Decimal Inch) | 0.1780 |
| Maximum Outside Diameter (Decimal Inch) | 0.1930 |
| Finish/Coating | Dry Film Lubricant |
| Number of Free Coils | 6-7/8 |
| Maximum Locking Torque (In/Lb) | 6 |
| Minimum Break Away Torque (In/Lb) | 1.00 |
| Thread Standard | UNC |
