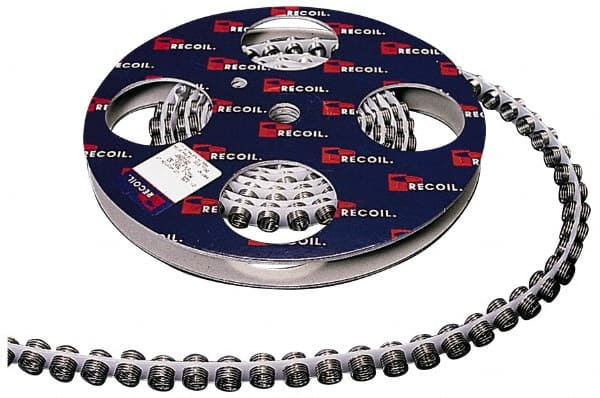

Recoil - Screw-Locking Inserts; Thread Size: #10-32 ; Overall Insert Length (Decimal Inch): 0.1900 ; Tang: Yes ; Tang: Tangless ; Length to Diameter Ratio: 1D ; Length to Diameter Ratio: 1D
Item #: 91906347
Brand: Recoil
Model #: 14602DSF
Product Specifications
Screw-Locking Inserts; Thread Size: #10-32 ; Overall Insert Length (Decimal Inch): 0.1900 ; Tang: Yes ; Tang: Tangless ; Length to Diameter Ratio: 1D ; Length to Diameter Ratio: 1D
| Thread Size | #10-32 |
| Overall Insert Length (Decimal Inch) | 0.1900 |
| Tang | Yes |
| Tang | Tangless |
| Length to Diameter Ratio | 1D |
| Number of Inserts | 1,000 |
| Minimum Outside Diameter (Decimal Inch) | 0.2360 |
| Maximum Outside Diameter (Decimal Inch) | 0.2560 |
| Finish/Coating | Dry Film Lubricant |
| Number of Free Coils | 4-1/8 |
| Maximum Locking Torque (In/Lb) | 13 |
| Minimum Break Away Torque (In/Lb) | 2.00 |
| Thread Standard | UNF |
