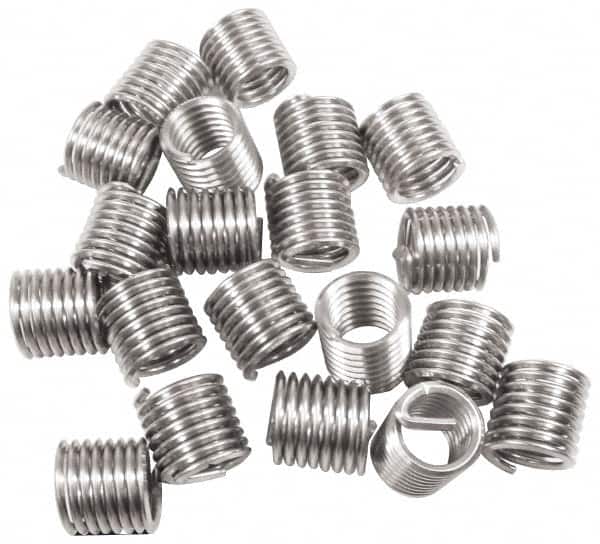

Recoil - 100 Inserts, 3/8-16 UNC, 2-1/2D, Stainless Steel Screw Locking Insert - 12-7/8 Free Coils, 15/16 Inch Overall Length, 0.452 to 0.472 Inch Outside Diameter, with Tang, Dry Film Lubricant
Item #: 91907022
Brand: Recoil
Model #: 13065D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 3/8-16 |
| Overall Insert Length (Decimal Inch) | 0.9380 |
| Tang | Yes |
| Tang | Tangless |
| Length to Diameter Ratio | 2-1/2D |
| Length to Diameter Ratio | 2-1/2D |
| Number of Inserts | 100 |
| Material | Stainless Steel |
| Minimum Outside Diameter (Decimal Inch) | 0.4520 |
| Maximum Outside Diameter (Decimal Inch) | 0.4720 |
| Finish/Coating | Dry Film Lubricant |
| Number of Free Coils | 12-7/8 |
| Maximum Locking Torque (In/Lb) | 80 |
| Minimum Break Away Torque (In/Lb) | 12.00 |
| Thread Standard | UNC |
