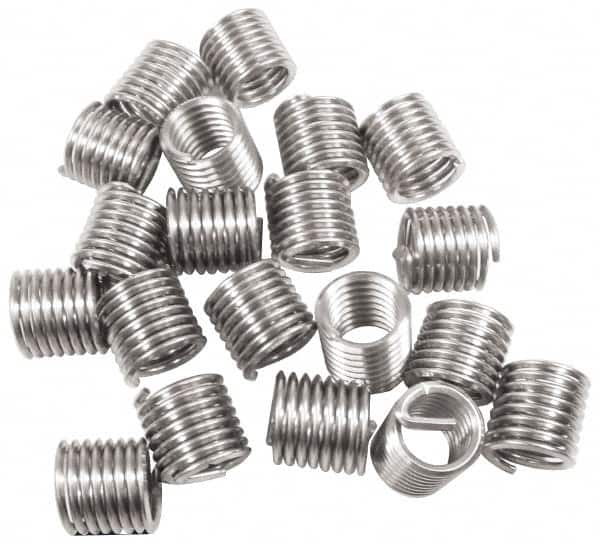

Recoil - 100 Inserts, 7/16-14 UNF, 1D, Stainless Steel Screw Locking Insert - 4-1/2 Free Coils, 7/16 Inch Overall Length, 0.526 to 0.551 Inch Outside Diameter, with Tang, Dry Film Lubricant
Item #: 91907071
Brand: Recoil
Model #: 13072D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 7/16-14 |
| Overall Insert Length (Decimal Inch) | 0.4380 |
| Tang | Yes |
| Tang | Tangless |
| Length to Diameter Ratio | 1D |
| Length to Diameter Ratio | 1D |
| Number of Inserts | 100 |
| Material | Stainless Steel |
| Minimum Outside Diameter (Decimal Inch) | 0.5260 |
| Maximum Outside Diameter (Decimal Inch) | 0.5510 |
| Finish/Coating | Dry Film Lubricant |
| Number of Free Coils | 4-1/2 |
| Maximum Locking Torque (In/Lb) | 100 |
| Minimum Break Away Torque (In/Lb) | 16.50 |
| Thread Standard | UNF |
