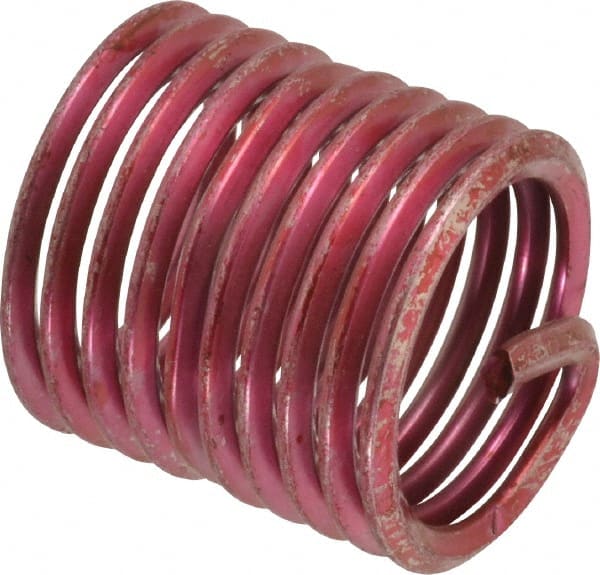

Recoil - 1-8 UNC, 1-1/2D, Stainless Steel Screw Locking Insert - 10-1/8 Free Coils, 1-1/2 Inch Overall Length, 1-1/6 to 1.196 Inch Outside Diameter, with Tang, Bright Finish
Item #: 91907246
Brand: Recoil
Model #: 13163
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 1-8 |
| Overall Insert Length (Decimal Inch) | 1.5000 |
| Tang | Yes |
| Tang | Tangless |
| Length to Diameter Ratio | 1-1/2D |
| Length to Diameter Ratio | 1-1/2D |
| Material | Stainless Steel |
| Minimum Outside Diameter (Decimal Inch) | 1.1660 |
| Maximum Outside Diameter (Decimal Inch) | 1.1960 |
| Finish/Coating | Bright |
| Number of Free Coils | 10-1/8 |
| Maximum Locking Torque (In/Lb) | 800 |
| Minimum Break Away Torque (In/Lb) | 110.00 |
| Thread Standard | UNC |
