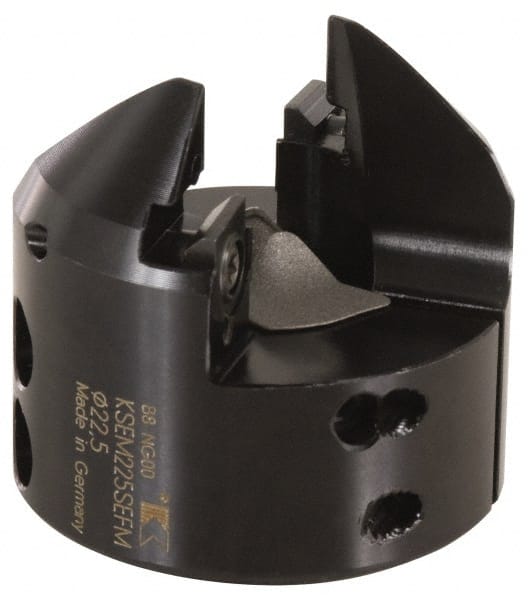

Kennametal - Series KSEM, 21mm ID, 50mm Overall Diam, 48mm OAL Drilling Chamfer Ring - 3.42807R001 Insert, 45° Chamfer, 2 Inserts
Item #: 91968826
Brand: Kennametal
Model #: 3586195
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM |
| Inside Diameter (mm) | 21.00 |
| Inside Diameter (Decimal Inch) | 0.8268 |
| Overall Diameter (mm) | 50.00 |
| Overall Diameter (Decimal Inch) | 1.9700 |
| Overall Length (mm) | 48.00 |
| Overall Length (Decimal Inch) | 1.8898 |
| Insert Style | 3.42807R001 |
| Chamfer Angle | 45 |
| Number of Chamfer Ring Inserts | 2 |
