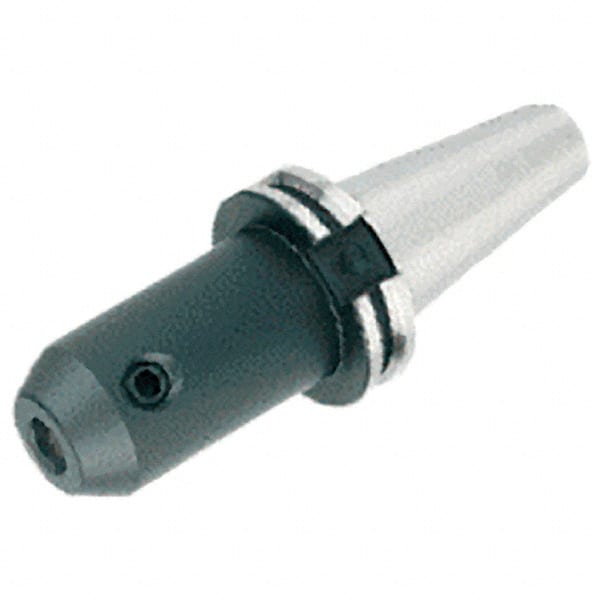

Iscar - CAT50 Taper Shank 1/2" Hole End Mill Holder/Adapter - 1-3/4" Nose Diam, 6-5/8" Projection, Through-Spindle & DIN Flange Coolant
Item #: 92039924
Brand: Iscar
Model #: 4501521
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Hole Diameter (Inch) | 1/2 |
| Nose Diameter (Inch) | 1-3/4 |
| Projection (Decimal Inch) | 6.6250 |
| Through Coolant | Yes |
| Clamping Depth (Decimal Inch) | 5.8750 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle & DIN Flange |
| Retention Knob Thread Size | 1-8 |
