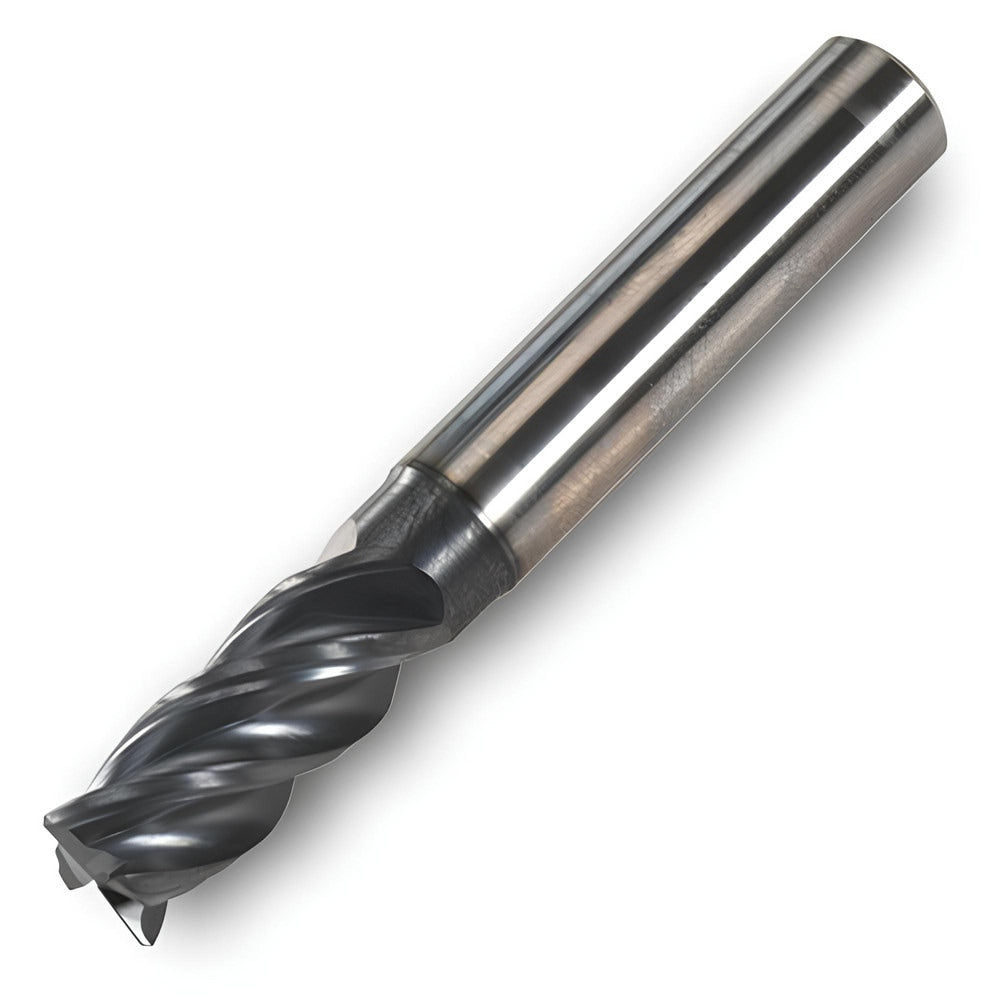

Brand: Ingersoll Cutting Tools / Part #: 3032240
Item #: 99363764
Brand: Ingersoll Cutting Tools
Model #: 3032240
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0200 |
| Coating/Finish | TiAlN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Overall Length (Inch) | 3 |
| Length of Cut (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Length Type | Long |
| Flute Type | Variable |
| Extended Reach | Yes |
| Shank Type | Weldon Flat |
| Centercutting | No |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Neck Diameter (Decimal Inch) | 0.3750 |
| Reach Length (Inch) | 3/4 |
| Minimum Helix Angle | 35 |
| Maximum Helix Angle | 37 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; High Temperature Alloy; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Material Grade | IN2005 |
| Series | 47D_RQ - 4FL |
