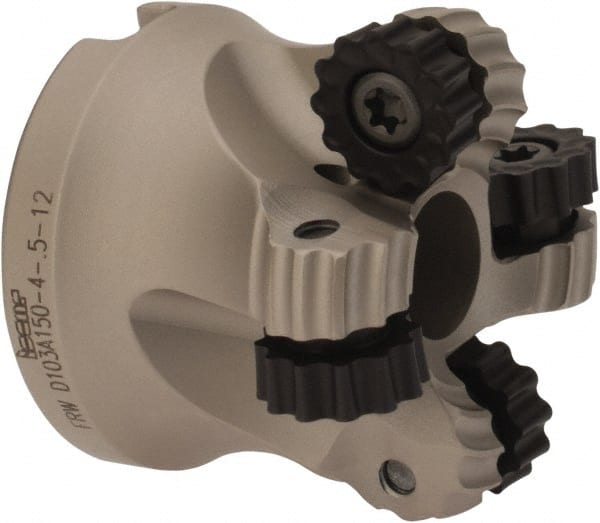

Iscar - 1.03" Cut Diam, 0.236" Max Depth, 1/2" Arbor Hole, 4 Inserts, RC.. 1206 Insert Style, Indexable Copy Face Mill - FRW Cutter Style, 1-1/4 High, Through Coolant, Series MillShred
Item #: 92105261
Brand: Iscar
Model #: 3197235
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0300 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Arbor Hole Diameter (Decimal Inch) | 0.5000 |
| Overall Height (Decimal Inch) | 1.2500 |
| Series | MillShred |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | RC.. 1206 |
| Cutter Style | FRW |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Insert Inscribed Circle (Decimal Inch) | 0.4720 |
| Complete Insert Compatibility | RCMT/RCCT-MO; RCMT/RCMW/RCCW-FW; RCMW/RCCW-MO |
| Maximum Cutting Diameter (Decimal Inch) | 1.500 |
