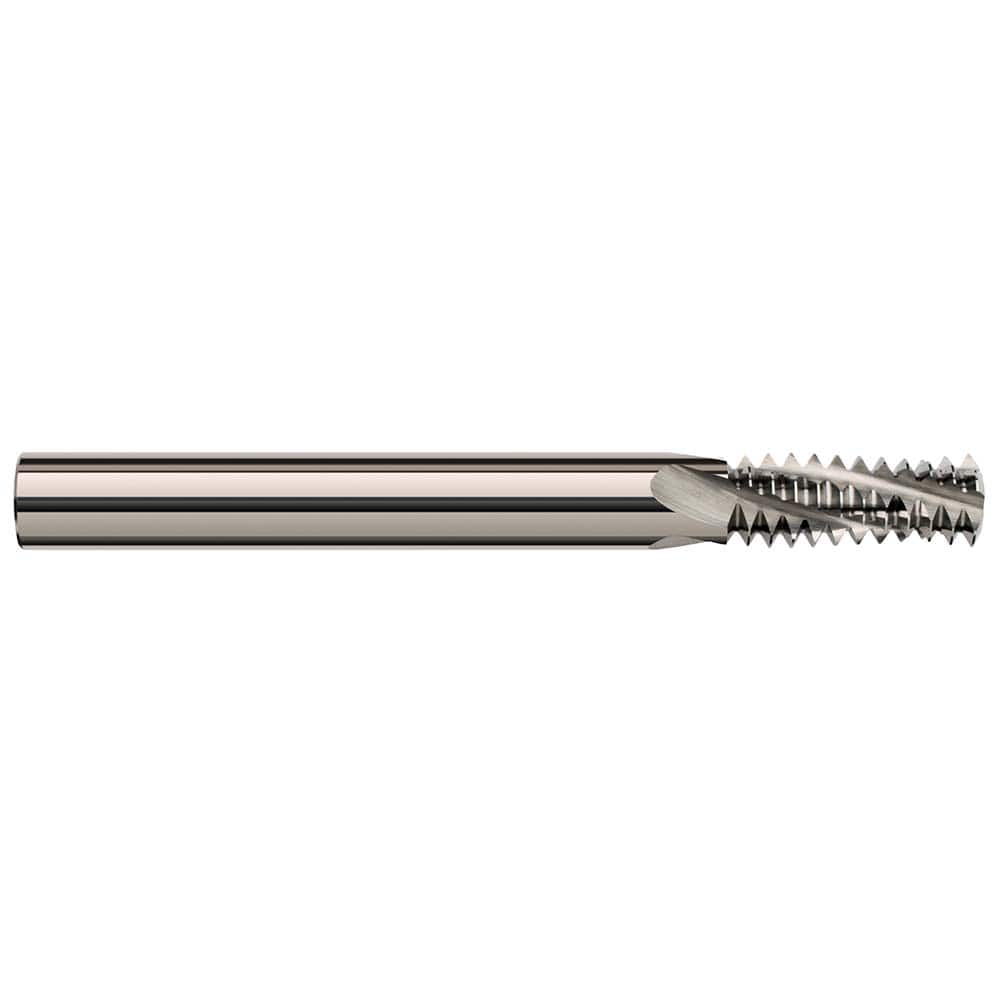

Harvey Tool - 3/4-16 Internal/External 16 TPI 1/2" Shank 4-Flute Solid Carbide Helical Flute Thread Mill
Item #: 92122399
Brand: Harvey Tool
Model #: 70128
Product Specifications
| Threads Per Inch | 16 |
| Material | Solid Carbide |
| Thread Size (Inch) | 3/4-16 |
| Thread Type | Internal/External |
| Shank Diameter (Inch) | 1/2 |
| Number of Flutes | 4 |
| Cutting Diameter (Decimal Inch) | 0.4900 |
| Length of Cut (Decimal Inch) | 1.2500 |
| Length of Cut (Inch) | 1-1/4 |
| Finish/Coating | Uncoated |
| Through Coolant | No |
| Minimum Nominal Diameter | 3/4 |
| Minimum Nominal Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 3.50000 |
| Overall Length (Inch) | 3-1/2 |
