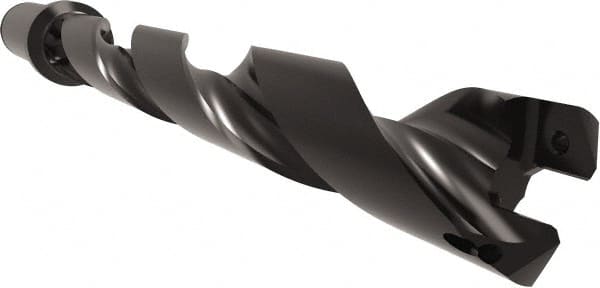

Allied Machine and Engineering - Series 26, 26 to 29mm Diam, 1-1/4" Diam Straight Shank with Flange, Helical Flute Spade Drill - 7-63/64" Max Depth, 9-5/8" Body Length, 11-29/32" OAL, Standard Length, Through Coolant
Item #: 92128479
Brand: Allied Machine and Engineering
Model #: 60726H-125C
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 26 |
| Minimum Drill Diameter (mm) | 26.00 |
| Minimum Drill Diameter (Decimal Inch) | 1.0236 |
| Maximum Drill Diameter (mm) | 29.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.1416 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Spade Drill Length | Standard Length |
| Overall Length (Inch) | 11-29/32 |
| Overall Length (Decimal Inch) | 11.9063 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Inch) | 7-63/64 |
| Maximum Drill Depth (Decimal Inch) | 7.9844 |
| Flute Type | Helical Flute |
| Body Length (Inch) | 9-5/8 |
| Body Length (Decimal Inch) | 9.6250 |
| Shank Length (Inch) | 2-9/32 |
| Shank Length (Decimal Inch) | 2.2813 |
| Through Coolant | Yes |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
