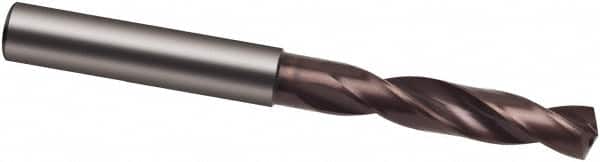

Screw Machine Length Drill Bit: 0.4134″ Dia, 140 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 8520
Item #: 92154335
Brand: Guhring
Model #: 9085200105000
Product Specifications
| Drill Bit Size (mm) | 10.50 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | HF |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Drill Bit Size (Decimal Inch) | 0.4134 |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0157 |
| Shank Diameter (mm) | 12.00 |
| Series | 8520 |
| Web Thinning | Web-Thinned |
| Number of Margins | 2 |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 1.5450 |
| Maximum Drilling Depth (mm) | 39.25 |
| Shank Length (Decimal Inch) | 1.8504 |
| Shank Length (mm) | 47.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | m7 |
| Standards | DIN 6537 K |
| Flute Length (mm) | 55.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
| Drill Bit Size Range (mm) | 9.50 to 11.00 |
| Specification Designation | DIN |
| Material Grade | K40 |
 | |
| MSC Part # | 92154335 |
| Mfr Part # | 9085200105000 |
| Country of OriginCountry of Origin is subject to change | Germany |
