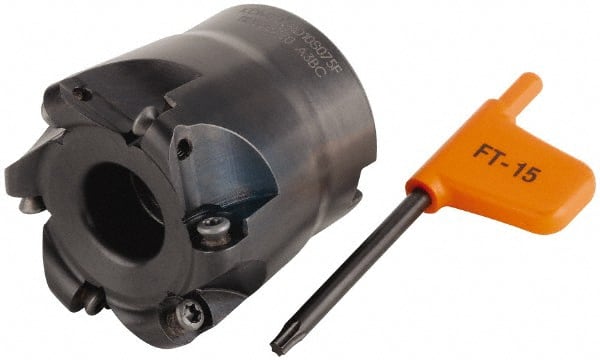

Kennametal - 50.8mm Cut Diam, 5mm Max Depth, 3/4" Arbor Hole, 7 Inserts, RD.. 1003... Insert Style, Indexable Copy Face Mill - KDM200 Cutter Style, 50.04mm High, Series KDM
Item #: 92283589
Brand: Kennametal
Model #: 2251763
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.80 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1968 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (mm) | 50.04 |
| Overall Height (Decimal Inch) | 1.9700 |
| Series | KDM |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | RD.. 1003... |
| Cutter Style | KDM200 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.6500 |
| Insert Inscribed Circle (mm) | 10.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.3937 |
| Complete Insert Compatibility | RD.. 1003... |
