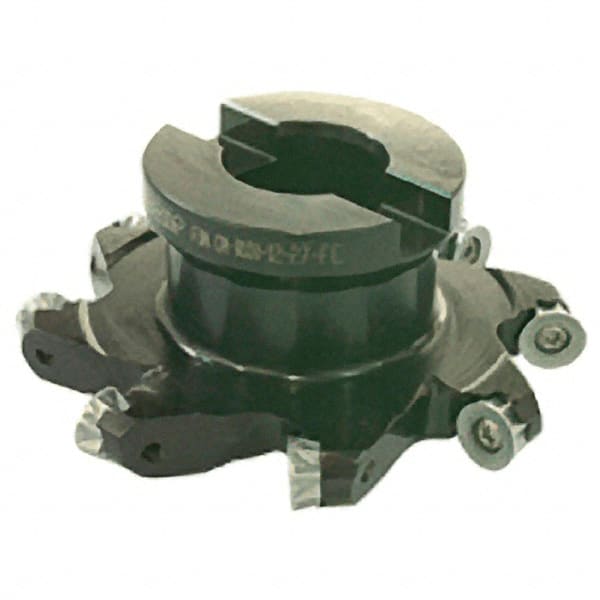

Iscar - Shell Mount B Connection, 16.5mm Cutting Width, 46.75mm Depth of Cut, 148.6mm Cutter Diam, 40mm Hole Diam, 12 Tooth Indexable Slotting Cutter - FDN-CM Toolholder, O45MT, R90CW, R90MT Insert, Right Hand Cutting Direction
Item #: 92313766
Brand: Iscar
Model #: 3101323
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount B |
| Cutting Width (mm) | 16.50 |
| Maximum Depth of Cut (mm) | 46.75 |
| Cutter Diameter (mm) | 148.60 |
| Hole Diameter (mm) | 40.00 |
| Number of Teeth | 12 |
| Toolholder Style | FDN-CM |
| Series | IscarMill(FDN-CM) |
| Insert Style | O45MT, R90CW, R90MT |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Hub Diameter (mm) | 80.00 |
| Keyway Width (mm) | 16.40 |
| Cutting Radius (Inch) | 1/64 |
| Complete Insert Compatibility1 | O45MT 050505-RM; R90CW 1205-T; R90CW 43-T; R90MT 1205-RM; R90MT 1205-T; R90MT 43-RM |
