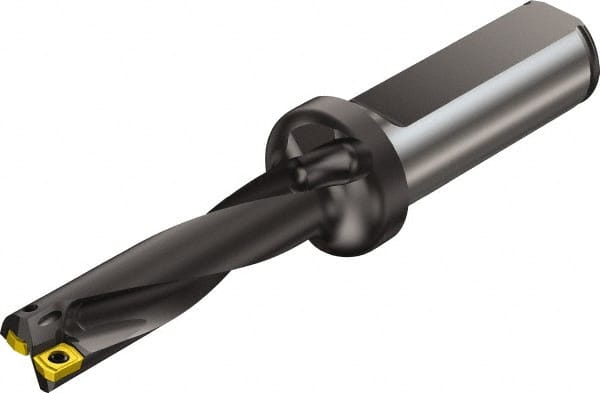

Sandvik Coromant - 4.3754" Max Drill Depth, 4xD, 1.062" Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Straight Shank
Item #: 92374321
Brand: Sandvik Coromant
Model #: 5723779
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..LXxx-04 |
| Drill Diameter (Decimal Inch) | 1.0620 |
| Maximum Drill Depth (Decimal Inch) | 4.3754 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 3 |
| Insert Size (Decimal Inch) | 0.1181 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.1211 |
| Maximum Drill Diameter (mm) | 26.97 |
| Overall Length/Projection (mm) | 191.80 |
| Overall Length/Projection (Decimal Inch) | 7.5512 |
| Insert Compatibility (Outside or Peripheral) | 05P |
| Flute Length (mm) | 126.78 |
| Flute Length (Decimal Inch) | 4.9915 |
| Body Length (Decimal Inch) | 4.3700 |
| Body Length (mm) | 111.00 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
| Radius (Decimal Inch) | 0.5310 |
| Series | CoroDrill 880 |
