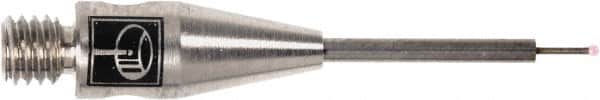

Renishaw - CMM Styli & Probes Stylus or Probe: Stylus Stylus Type: Ball
Item #: 92465848
Brand: Renishaw
Model #: A-5555-0267
Exact Tooling IR#: 04
Features and Benefits
The stylus is the spherical portion or tip of the probe that makes contact with the workpiece surface. It is commonly made of a synthetic ruby and mounted on a stem.
Ball styles are the most commonly used and probe X, Y and Z axis.
Product Specifications
CMM Styli & Probes; Stylus or Probe: Stylus ; Stylus Type: Ball ; Stylus Thread Size: M3 ; Point Material: Ruby ; Ball Diameter (mm): 0.50 ; Ball Diameter (Decimal Inch): 0.0200
| Stylus or Probe | Stylus |
| Stylus Type | Ball |
| Stylus Thread Size | M3 |
| Point Material | Ruby |
| Ball Diameter (mm) | 0.50 |
| Ball Diameter (Decimal Inch) | 0.0200 |
| Overall Length (mm) | 22.00 |
| Overall Length (Decimal Inch) | 0.8660 |
| Stem Material | Carbide |
| Stem Diameter (mm) | 0.30 |
| Stem Diameter (Decimal Inch) | 0.0118 |
| Effective Working Length (mm) | 9.00 |
| Effective Working Length (Decimal Inch) | 0.3500 |
