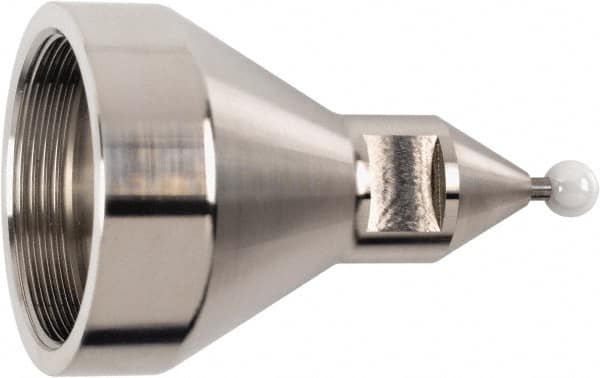

Renishaw - CMM Styli & Probes Stylus or Probe: Stylus Stylus Type: Ball
Item #: 92465889
Brand: Renishaw
Model #: A-5003-7674
Exact Tooling IR#: 04
Features and Benefits
The stylus is the spherical portion or tip of the probe that makes contact with the workpiece surface. It is commonly made of a synthetic ruby and mounted on a stem.
Ball styles are the most commonly used and probe X, Y and Z axis.
Product Specifications
CMM Styli & Probes; Stylus or Probe: Stylus ; Stylus Type: Ball ; Stylus Thread Size: 1-1/4 - 20 ; Point Material: Zirconia ; Ball Diameter (mm): 6.00 ; Ball Diameter (Decimal Inch): 0.2400
| Stylus or Probe | Stylus |
| Stylus Type | Ball |
| Stylus Thread Size | 1-1/4 - 20 |
| Point Material | Zirconia |
| Ball Diameter (mm) | 6.00 |
| Ball Diameter (Decimal Inch) | 0.2400 |
| Overall Length (mm) | 57.00 |
| Overall Length (Decimal Inch) | 2.2400 |
| Stem Material | Carbide |
| Stem Diameter (mm) | 3.00 |
| Stem Diameter (Decimal Inch) | 0.1180 |
| Effective Working Length (mm) | 15.00 |
| Effective Working Length (Decimal Inch) | 0.5900 |
