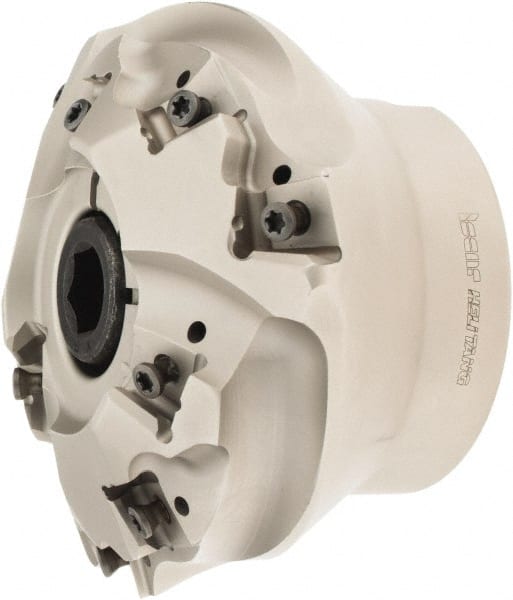

Iscar - 4.252" Cut Diam, 1-1/4" Arbor Hole, 0.637" Max Depth of Cut, 30° Indexable Chamfer & Angle Face Mill - 9 Inserts, T490 LN.. 1306.. Insert, Right Hand Cut, 9 Flutes, Through Coolant, Series Helitang
Item #: 92489822
Brand: Iscar
Model #: 3106948
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.2520 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 30 |
| Overall Height (Decimal Inch) | 2.5000 |
| Insert Compatibility | T490 LN.. 1306.. |
| Series | Helitang |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.6370 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | T430 SM |
| Number of Flutes | 9 |
| Hub Diameter (Decimal Inch) | 2.5600 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 2.2520 |
| Complete Insert Compatibility | T490 LNAR 1306PN-R; T490 LNAR 1306PN-R-P; T490 LNHT 130612PNTR; T490 LNHT 130616PNTL; T490 LNHT 130616PNTR; T490 LNHT 130624PNTL; T490 LNHT 130624PNTR; T490 LNHT 130631PNTL; T490 LNHT 130631PNTR; T490 LNHT 130640PNTR; T490 LNHT 130650PNTR; T490 LNHT 13066 |
