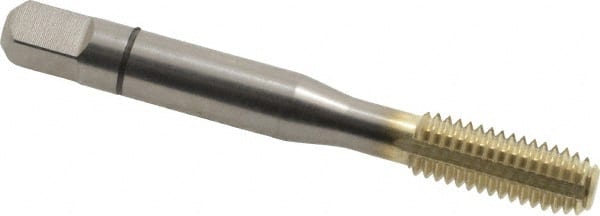

Balax - M8x1.25 Metric Coarse 6H D10 Thread Limit Bottoming Thread Forming Tap - Powdered Metal High Speed Steel, Bal-Plus Finish, 2-23/32" OAL, 0.88" Thread Length, Right Hand Thread, Series BXDIECAST
Item #: 92509710
Brand: Balax
Model #: 18680-91L
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
Bal-Plus is a thin, gold-colored coating that provides resistance to galling. It is commonly used on aluminum and nonferrous metals. Bal-Plus is a proprietary coating exclusive to Balax, Inc.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M8x1.25 |
| Class of Fit | 6H |
| Thread Limit | D10 |
| Chamfer | Bottoming |
| Finish/Coating | Bal-Plus |
| Material | Powdered Metal High Speed Steel |
| Overall Length (Inch) | 2-23/32 |
| Thread Standard | Metric Coarse |
| Thread Length (Decimal Inch) | 0.8800 |
| Series/List | BXDIECAST |
| Neck Length (Inch) | 1-1/8 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Square Length (Inch) | 3/8 |
| Material Application | Aluminum |
