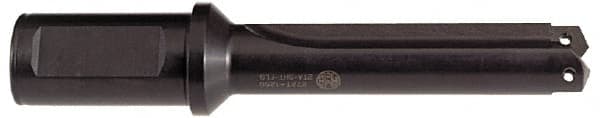

Allied Machine and Engineering - Series 2, 25 to 35mm Diam, 32mm Diam Straight Shank with Flange, Straight Flute Spade Drill - 57.2mm Max Depth, 92.1mm Body Length, 146.4mm OAL, Short Length, Through Coolant
Item #: 92519883
Brand: Allied Machine and Engineering
Model #: 21020S-32FM
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 2 |
| Minimum Drill Diameter (mm) | 25.00 |
| Maximum Drill Diameter (mm) | 35.00 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 32.00 |
| Spade Drill Length | Short Length |
| Overall Length (mm) | 146.40 |
| Maximum Drill Depth (mm) | 57.20 |
| Flute Type | Straight Flute |
| Flute Length (mm) | 88.50 |
| Body Length (mm) | 92.10 |
| Shank Length (mm) | 57.90 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | BSP |
| Body Side Coolant Hole Thread Size (Inch) | 1/8 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
