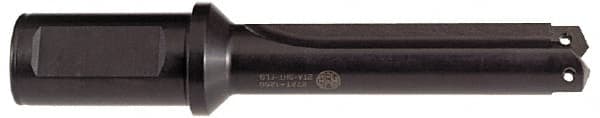

Allied Machine and Engineering - Series 3, 36 to 47mm Diam, 40mm Diam Straight Shank with Flange, Straight Flute Spade Drill - 76.2mm Max Depth, 129.8mm Body Length, 195.1mm OAL, Short Length, Through Coolant
Item #: 92519909
Brand: Allied Machine and Engineering
Model #: 21030S-40FM
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 3 |
| Minimum Drill Diameter (mm) | 36.00 |
| Maximum Drill Diameter (mm) | 47.00 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 40.00 |
| Spade Drill Length | Short Length |
| Overall Length (mm) | 195.10 |
| Maximum Drill Depth (mm) | 76.20 |
| Flute Type | Straight Flute |
| Flute Length (mm) | 125.00 |
| Body Length (mm) | 129.80 |
| Shank Length (mm) | 70.10 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | BSP |
| Body Side Coolant Hole Thread Size (Inch) | 1/4 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
