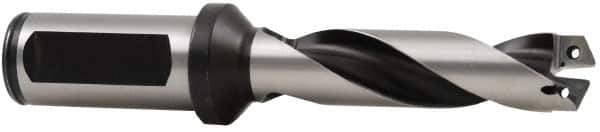

Allied Machine and Engineering - Series 0.5, 15.5 to 17.5mm Diam, 20mm Diam Straight Shank with Flange, Helical Flute Spade Drill - 177.8mm Max Depth, 209.1mm Body Length, 248.3mm OAL, Long Length, Through Coolant
Item #: 92520063
Brand: Allied Machine and Engineering
Model #: 26005H-20FM
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 0.5 |
| Minimum Drill Diameter (mm) | 15.50 |
| Maximum Drill Diameter (mm) | 17.50 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 20.00 |
| Spade Drill Length | Long Length |
| Overall Length (mm) | 248.30 |
| Maximum Drill Depth (mm) | 177.80 |
| Flute Type | Helical Flute |
| Flute Length (mm) | 206.40 |
| Body Length (mm) | 209.10 |
| Shank Length (mm) | 41.90 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
