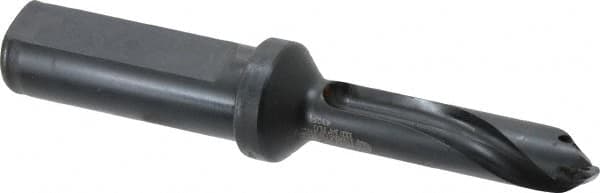

Allied Machine and Engineering - Series 13, 13 to 13.99mm Diam, 3/4" Diam Straight Shank with Flange, Straight Flute Spade Drill - 1-41/64" Max Depth, 2-47/64" Body Length, 4-49/64" OAL, Standard Length, Through Coolant
Item #: 92520436
Brand: Allied Machine and Engineering
Model #: 60313S-075F
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 13 |
| Minimum Drill Diameter (mm) | 13.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5118 |
| Maximum Drill Diameter (mm) | 13.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.5508 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 3/4 |
| Spade Drill Length | Standard Length |
| Overall Length (Inch) | 4-49/64 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Inch) | 1-41/64 |
| Flute Type | Straight Flute |
| Body Length (Inch) | 2-47/64 |
| Shank Length (Inch) | 2-1/32 |
| Through Coolant | Yes |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
