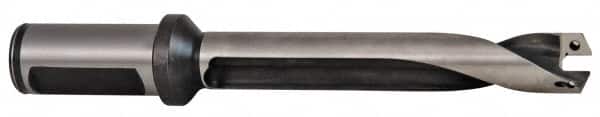

Allied Machine and Engineering - Series 18, 18 to 19.99mm Diam, 25mm Diam Straight Shank with Flange, Straight Flute Spade Drill - 99.9mm Max Depth, 134mm Body Length, 187.1mm OAL, Standard Length, Through Coolant
Item #: 92521095
Brand: Allied Machine and Engineering
Model #: 60518S-25FM
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 18 |
| Minimum Drill Diameter (mm) | 18.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7087 |
| Maximum Drill Diameter (mm) | 19.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7870 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 25.00 |
| Spade Drill Length | Standard Length |
| Overall Length (mm) | 187.10 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 99.90 |
| Flute Type | Straight Flute |
| Body Length (mm) | 134.00 |
| Shank Length (mm) | 53.10 |
| Through Coolant | Yes |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
