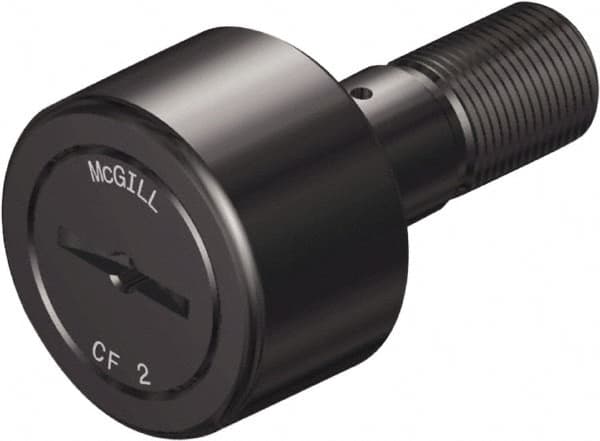

McGill - 2-1/2" Roller Diam x 1-1/2" Width, 1" Stud Diam x 2-1/4" Length, Sealed Stud Cam Follower - Steel, 1-1/8" Thread Length, 1-14 Thread, 3.78" OAL, 11,720 Lb Dynamic Cap, 16,450 Lb Static Cap
Item #: 92610203
Brand: McGill
Model #: CF 2 1/2 S
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Sealed Stud Cam Follower |
| Roller Diameter (Decimal Inch) | 2.5000 |
| Roller Diameter (Inch) | 2-1/2 |
| Roller Width (Decimal Inch) | 1.5000 |
| Roller Width (Inch) | 1-1/2 |
| Stud Diameter (Decimal Inch) | 1.0000 |
| Dynamic Load Capacity (Lb.) | 11720 |
| Dynamic Load Capacity (N) | 52131 |
| Static Load Capacity (Pounds) | 16450.00 |
| Static Load Capacity | 73170 |
| Length (Decimal Inch) | 3.780 |
| Thread Size | 1-14 |
| Material | Steel |
| Stud Length (Decimal Inch) | 2.2500 |
| Stud Length (Inch) | 2-1/4 |
| Thread Length (Inch) | 1-1/8 |
| McGill Part Number | CF 2 1/2 S |
| Roller Type | Needle Roller |
