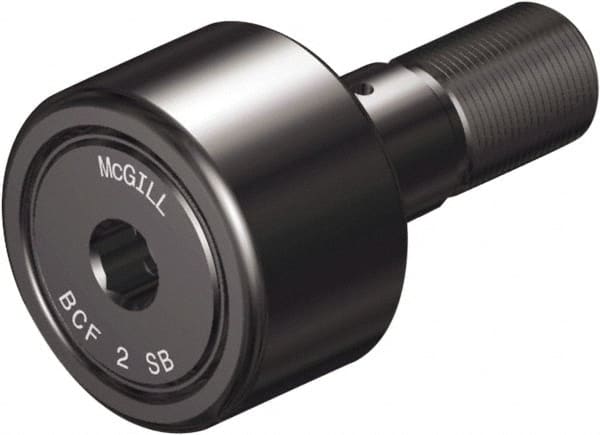

McGill - 1-3/8" Roller Diam x 3/4" Width, 1/2" Stud Diam x 1-1/4" Length, Sealed Self Lubricating Stud Cam Follower with Nonmetallic Bushing and Hex - Steel, 5/8" Thread Length, 1/2-20 Thread, 2.03" OAL
Item #: 92610880
Brand: McGill
Model #: BCF 1 3/8 SB
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Sealed Self-Lubricating Stud Cam Follower with Non-Metallic Bushing and Hex |
| Roller Diameter (Decimal Inch) | 1.3750 |
| Roller Diameter (Inch) | 1-3/8 |
| Roller Width (Decimal Inch) | 0.7500 |
| Roller Width (Inch) | 3/4 |
| Stud Diameter (Decimal Inch) | 0.5000 |
| Length (Decimal Inch) | 2.030 |
| Thread Size | 1/2-20 |
| Material | Steel |
| Stud Length (Decimal Inch) | 1.2500 |
| Stud Length (Inch) | 1-1/4 |
| Thread Length (Inch) | 5/8 |
| McGill Part Number | BCF 1 3/8 SB |
| Roller Type | Non Metallic Bushing |
