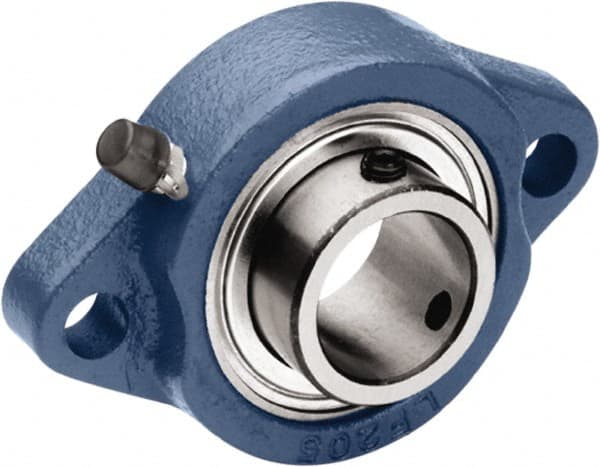

Tritan - 1-1/4" ID, 4.8" OAL x 1.44" OAH 2-Bolt Flange - 3,440 Lb Static Cap, 5,778 Lb Dyn Cap, 3.94" Btw Mnt Hole Ctrs, 0.51" Base-to-Ctr Ht, Cast Iron/Steel
Item #: 92644954
Brand: Tritan
Model #: SBLF207-20G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 2-Bolt Flange |
| Inside Diameter (Decimal Inch) | 1.2500 |
| Inside Diameter (Inch) | 1-1/4 |
| Width (Decimal Inch) | 3.5000 |
| Overall Length (Decimal Inch) | 4.8000 |
| Overall Height (Decimal Inch) | 1.4400 |
| Static Load Capacity (Pounds) | 3439.58 |
| Dynamic Load Capacity (Pounds) | 5778 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 3.9400 |
| Material | Cast Iron/Steel |
| Distance Between Base And Center (Decimal Inch) | 0.5100 |
| Insert Material | 52100 Steel |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 3/8 |
| Metric Bolt Size | 10.0000 |
