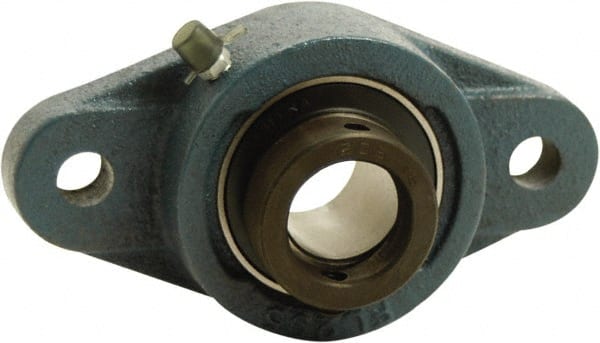

Tritan - 1-1/2" ID, 6.89" OAL x 2.22" OAH 2-Bolt Flange - 4,069 Lb Static Cap, 6,632 Lb Dyn Cap, 5.67" Btw Mnt Hole Ctrs, 0.84" Base-to-Ctr Ht, Cast Iron/Steel
Item #: 92644988
Brand: Tritan
Model #: HCFLU208-24
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 2-Bolt Flange |
| Inside Diameter (Decimal Inch) | 1.5000 |
| Inside Diameter (Inch) | 1-1/2 |
| Width (Decimal Inch) | 3.9400 |
| Overall Length (Decimal Inch) | 6.8900 |
| Overall Height (Decimal Inch) | 2.2200 |
| Static Load Capacity (Pounds) | 4069.04 |
| Dynamic Load Capacity (Pounds) | 6632 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 5.6700 |
| Material | Cast Iron/Steel |
| Distance Between Base And Center (Decimal Inch) | 0.8400 |
| Insert Material | 52100 Steel |
| Lock Type | Eccentric |
| Bolt Size (Inch) | 1/2 |
| Metric Bolt Size | 14.0000 |
