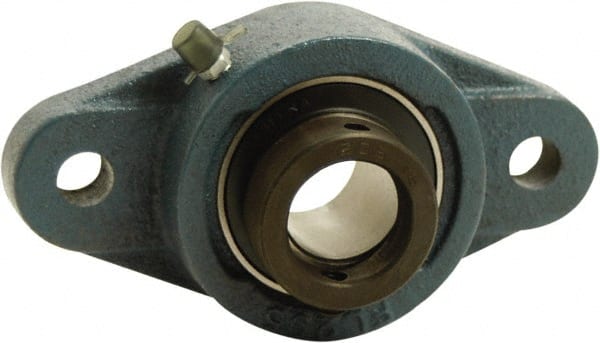

Tritan - 1-3/4" ID, 7.4" OAL x 2.22" OAH 2-Bolt Flange - 4,631 Lb Static Cap, 7,104 Lb Dyn Cap, 5.83" Btw Mnt Hole Ctrs, 0.84" Base-to-Ctr Ht, Cast Iron/Steel
Item #: 92645746
Brand: Tritan
Model #: HCFLU209-28
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 2-Bolt Flange |
| Inside Diameter (Decimal Inch) | 1.7500 |
| Inside Diameter (Inch) | 1-3/4 |
| Width (Decimal Inch) | 4.2500 |
| Overall Length (Decimal Inch) | 7.4000 |
| Overall Height (Decimal Inch) | 2.2200 |
| Static Load Capacity (Pounds) | 4631.06 |
| Dynamic Load Capacity (Pounds) | 7104 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 5.8300 |
| Material | Cast Iron/Steel |
| Distance Between Base And Center (Decimal Inch) | 0.8400 |
| Insert Material | 52100 Steel |
| Lock Type | Eccentric |
| Bolt Size (Inch) | 5/8 |
| Metric Bolt Size | 16.0000 |
