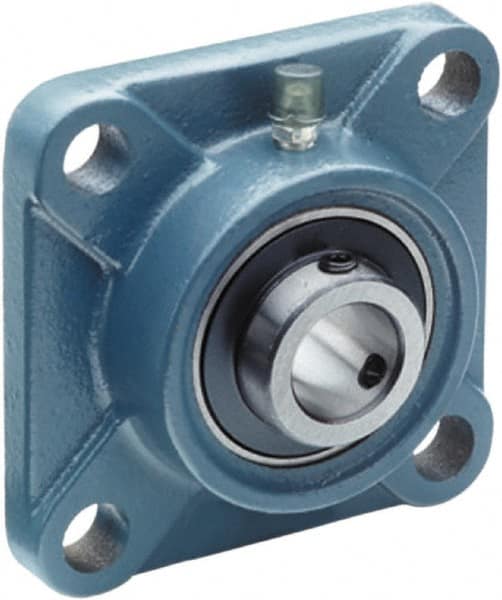

Tritan - 5/8" ID, 2.9921" OAL x 1.2165" OAH 4-Bolt Flange - 1,034 Lb Static Cap, 2,158 Lb Dyn Cap, 2.13" Btw Mnt Hole Ctrs, 0.5906" Base-to-Ctr Ht, Cast Iron/Steel
Item #: 92647825
Brand: Tritan
Model #: UCF202-10S (40M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 4-Bolt Flange |
| Inside Diameter (Decimal Inch) | 0.6250 |
| Inside Diameter (Inch) | 5/8 |
| Width (Decimal Inch) | 2.9921 |
| Overall Length (Decimal Inch) | 2.9921 |
| Overall Height (Decimal Inch) | 1.2165 |
| Static Load Capacity (Pounds) | 1034.00 |
| Dynamic Load Capacity (Pounds) | 2158 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 2.1300 |
| Material | Cast Iron/Steel |
| Distance Between Base And Center (Decimal Inch) | 0.5906 |
| Insert Material | 52100 Steel |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 3/8 |
| Metric Bolt Size | 10.0000 |
