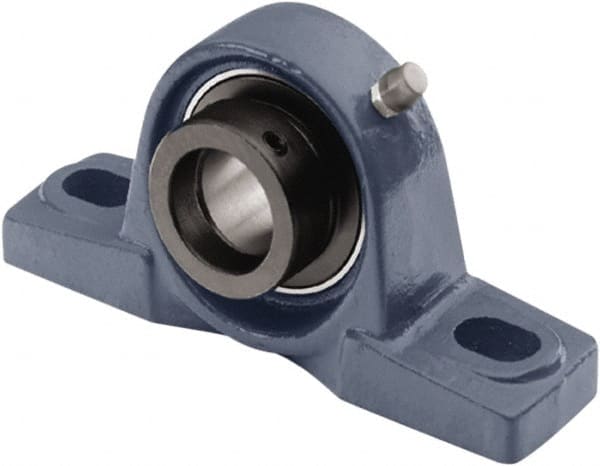

Tritan - 1-15/16" ID, 7.9921" OAL x 4.4094" OAH Pillow Block - 5,216 Lb Static Cap, 7,868 Lb Dyn Cap, 6.26" Btw Mnt Hole Ctrs, 2-3/16" Base-to-Ctr Ht, Cast Iron/Steel
Item #: 92648476
Brand: Tritan
Model #: HCPK210-31
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Pillow Block |
| Inside Diameter (Decimal Inch) | 1.9375 |
| Inside Diameter (Inch) | 1-15/16 |
| Width (Decimal Inch) | 2.2441 |
| Overall Length (Decimal Inch) | 7.9921 |
| Overall Height (Decimal Inch) | 4.4094 |
| Static Load Capacity (Pounds) | 5215.57 |
| Dynamic Load Capacity (Pounds) | 7868 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 6.2600 |
| Material | Cast Iron/Steel |
| Distance Between Base And Center (Decimal Inch) | 2.1875 |
| Insert Material | 52100 Steel |
| Lock Type | Eccentric |
| Bolt Size (Inch) | 7/16 |
| Metric Bolt Size | 12.0000 |
