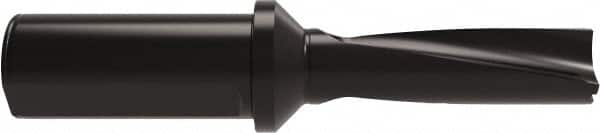

Allied Machine and Engineering - Series APX 38, Head Connection 00, 3xD, 2" Shank Diam, Drill Body - 7.7343" Drill Body Length to Flange, W3803H Toolholder, 12" OAL, Through Coolant
Item #: 92681022
Brand: Allied Machine and Engineering
Model #: W3803H-200F
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | APX 38 |
| Head Connection Size | 00 |
| Drill Depth by Diameter Ratio | 3xD |
| Shank Diameter (Inch) | 2 |
| Drill Body Length to Flange (Decimal Inch) | 7.7343 |
| Toolholder Style | W3803H |
| Nose Diameter (Decimal Inch) | 0.0000 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Length (Decimal Inch) | 4.5000 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
