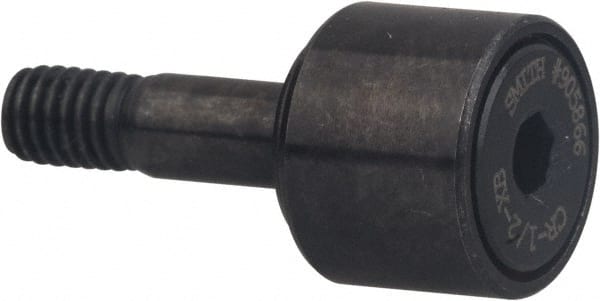

Accurate Bushing - 1/2" Roller Diam x 3-3/4" Width, 0.19" Stud Diam x 5/8" Length, Stud Cam Follower with Hex - Carbon Steel, 1/4" Thread Length, 10-32 Thread, 4-3/8" OAL, 970 Lb Dynamic Cap
Item #: 92869429
Brand: Accurate Bushing
Model #: CR-1/2-B
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Stud Cam Follower with Hex |
| Roller Diameter (Decimal Inch) | 0.5000 |
| Roller Diameter (Inch) | 1/2 |
| Roller Width (Decimal Inch) | 3.7500 |
| Stud Diameter (Decimal Inch) | 0.1900 |
| Dynamic Load Capacity (Lb.) | 970 |
| Static Load Capacity (Pounds) | 0.00 |
| Length (Decimal Inch) | 4.375 |
| Thread Size | 10-32 |
| Material | Carbon Steel |
| Stud Length (Decimal Inch) | 0.6250 |
| Stud Length (Inch) | 5/8 |
| Thread Length (Inch) | 1/4 |
| Hex Size (Inch) | 1/8 |
