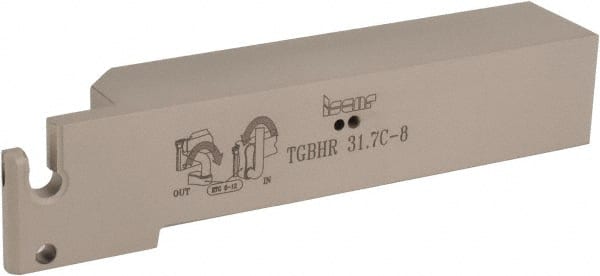

Iscar - 1.18" Max Depth, 0.315" to 0.315" Width, External Right Hand Indexable Grooving/Cutoff Toolholder
Item #: 92870500
Brand: Iscar
Model #: 2801594
Product Specifications
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.1800 |
| Minimum Groove Width (Decimal Inch) | 0.3150 |
| Maximum Groove Width (Decimal Inch) | 0.3150 |
| Overall Length (Decimal Inch) | 6.7000 |
| Series | Sumo-Grip |
| Toolholder Style | TGBH |
| Insert Compatibility | TAG N 8..C/W/M; TAGB/TAGBA 8.. |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.1100 |
| Manufacturers Catalog Number | TGBHL 31.7C-8 |
| Complete Insert Compatibility | TAG N8C; TAGB 808Y; TAGB 840Y; TAGBA 80-40YZ |
