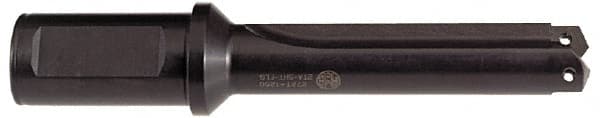

Allied Machine and Engineering - 13mm to 17.5mm Diam 22.2mm Max Depth Straight Flute Spade Drill
Item #: 92519859
Brand: Allied Machine and Engineering
Model #: 21000S-20FM
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 0 |
| Minimum Drill Diameter (mm) | 13.00 |
| Maximum Drill Diameter (mm) | 17.50 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 20.00 |
| Spade Drill Length | Short Length |
| Overall Length (mm) | 89.50 |
| Maximum Drill Depth (mm) | 22.20 |
| Flute Type | Straight Flute |
| Flute Length (mm) | 47.60 |
| Body Length (mm) | 50.40 |
| Shank Length (mm) | 41.90 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | BSP |
| Body Side Coolant Hole Thread Size (Inch) | 1/8 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
