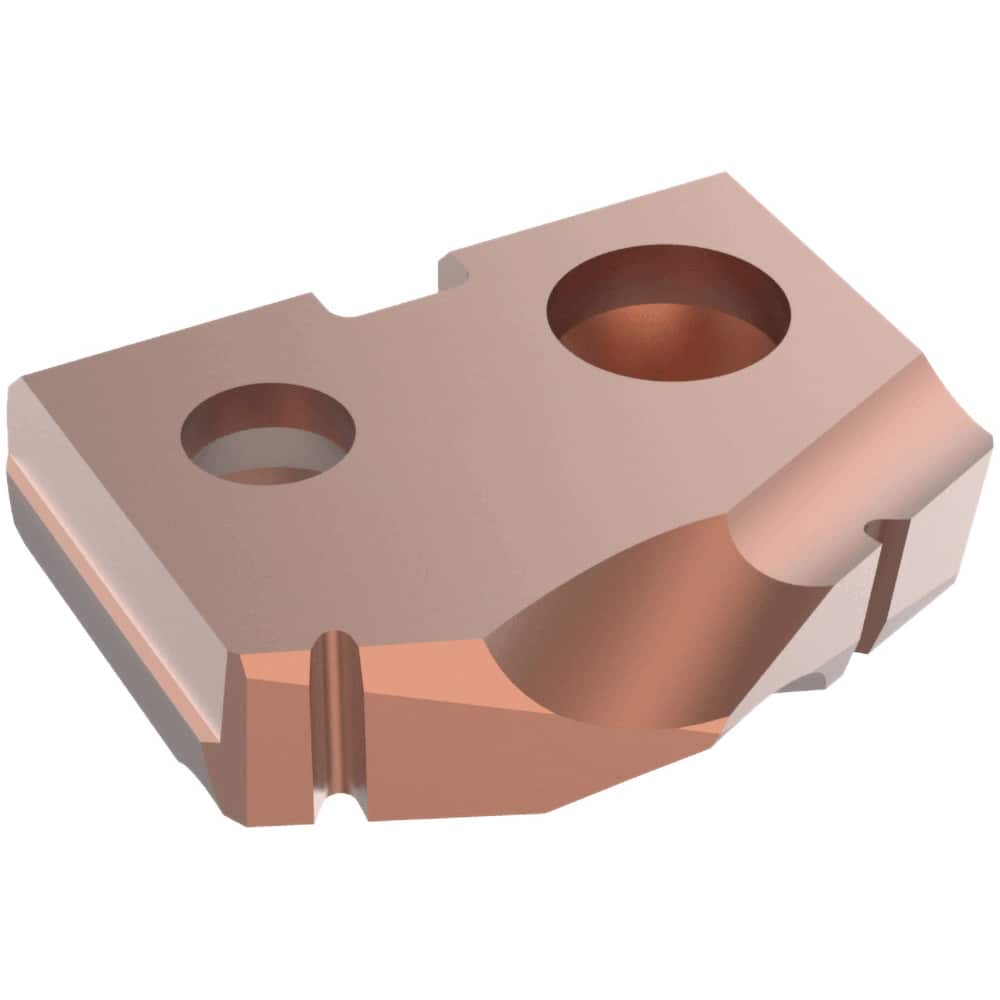

Spade Drill Insert: 11/16″ Dia, Series 0, 132 ° Point AM200 Finish, Series 0
Item #: 92927243
Brand: Allied Machine and Engineering
Model #: 1C10H-0022-TC
Product Specifications
| Diameter (mm) | 17.46 |
| Diameter (Inch) | 11/16 |
| Diameter (Decimal Inch) | 0.6875 |
| Series Code/Seat Size | 0 |
| Point Angle | 132 |
| Included Angle Degree | 132 |
| Manufacturer Grade | C1 (K35) |
| Series | 0 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Coating/Finish | AM200 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
