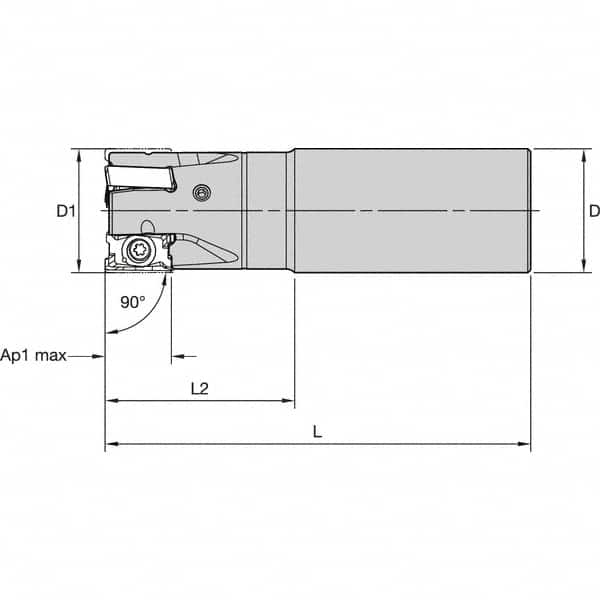

Kennametal - 1-1/2" Cut Diam, 15.5mm Max Depth of Cut, 1-1/4" Shank Diam, 51.2mm OAL, Indexable Square Shoulder End Mill - LNGU15T608SRGE Inserts, Cylindrical Shank, 0° Lead Angle, Through Coolant, Series MILL 4-15
Item #: 92956846
Brand: Kennametal
Model #: 5544401
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 38.10 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (mm) | 51.20 |
| Overall Length/Projection (Decimal Inch) | 8.0000 |
| Lead Angle | 0 |
| Series | MILL 4-15 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 15.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.6100 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (mm) | 38.10 |
| Minimum Cutting Diameter (Decimal Inch) | 1.5000 |
| Head Length (mm) | 57.15 |
| Head Length (Decimal Inch) | 2.2500 |
| Weldon Flat | No |
| Insert Compatibility | LNGU15T608SRGE |
| Maximum RPM | 19500 |
| Toolholder Material | Steel |
| Coolant Hole Diameter (mm) | 4.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1570 |
