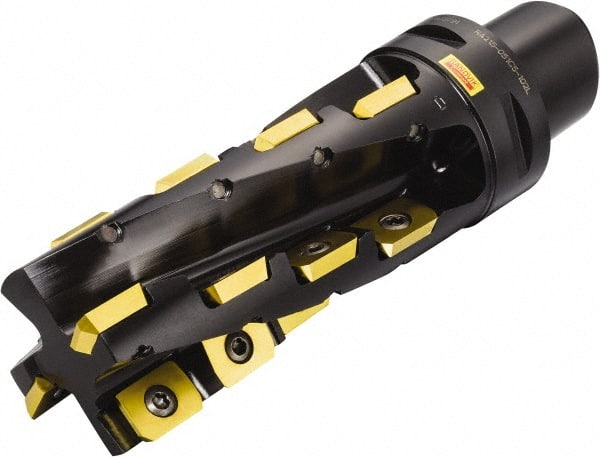

Sandvik Coromant - 2" Cut Diam, 4" Max Depth of Cut, 147.8534mm OAL, Indexable Square Shoulder End Mill - LEHT 18 04 16 Inserts, C5 Modular Connection, 90° Lead Angle, Series U-Max
Item #: 93032332
Brand: Sandvik Coromant
Model #: 5740166
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Cutting Diameter (Inch) | 2 |
| Shank Type | Modular Connection |
| Modular Connection Size | C5 |
| Overall Length/Projection (mm) | 147.85 |
| Overall Length/Projection (Decimal Inch) | 5.8210 |
| Lead Angle | 90 |
| Series | U-Max |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Inch) | 4 |
| Maximum Depth of Cut (Decimal Inch) | 4.0000 |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | U-Max |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (Inch) | 2 |
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Weldon Flat | No |
| Insert Compatibility | LEHT 18 04 16 |
| Maximum RPM | 7800 |
| Toolholder Material | Steel |
