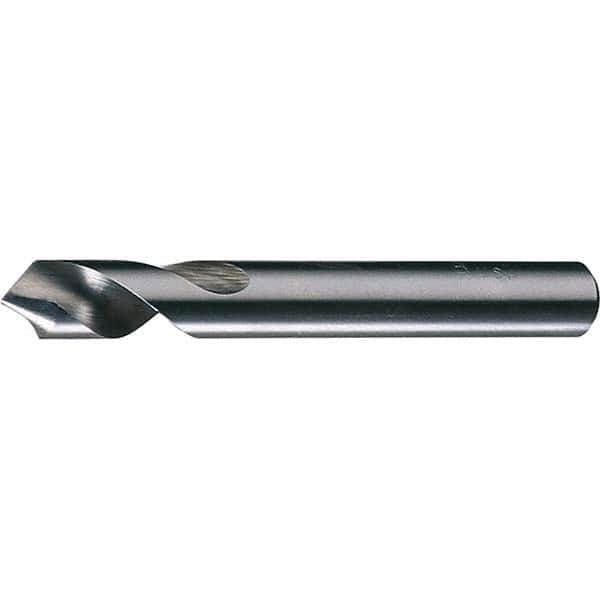

90° 2-1/2″ OAL High Speed Steel Spotting Drill Bright/Uncoated, 1″ Flute Length, 1/4″ Shank Diam, RH Cut, Series 90SPS
Item #: 93075620
Brand: Chicago-Latrobe
Model #: 49490
Product Specifications
| Drill Point Angle | 90 |
| Cutting Diameter (Inch) | 1/4 |
| Cutting Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Inch) | 2-1/2 |
| Tool Material | High Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Single/Double Ended | Single |
| Series | 90SPS |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Length (Inch) | 1 |
| Flute Length (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
