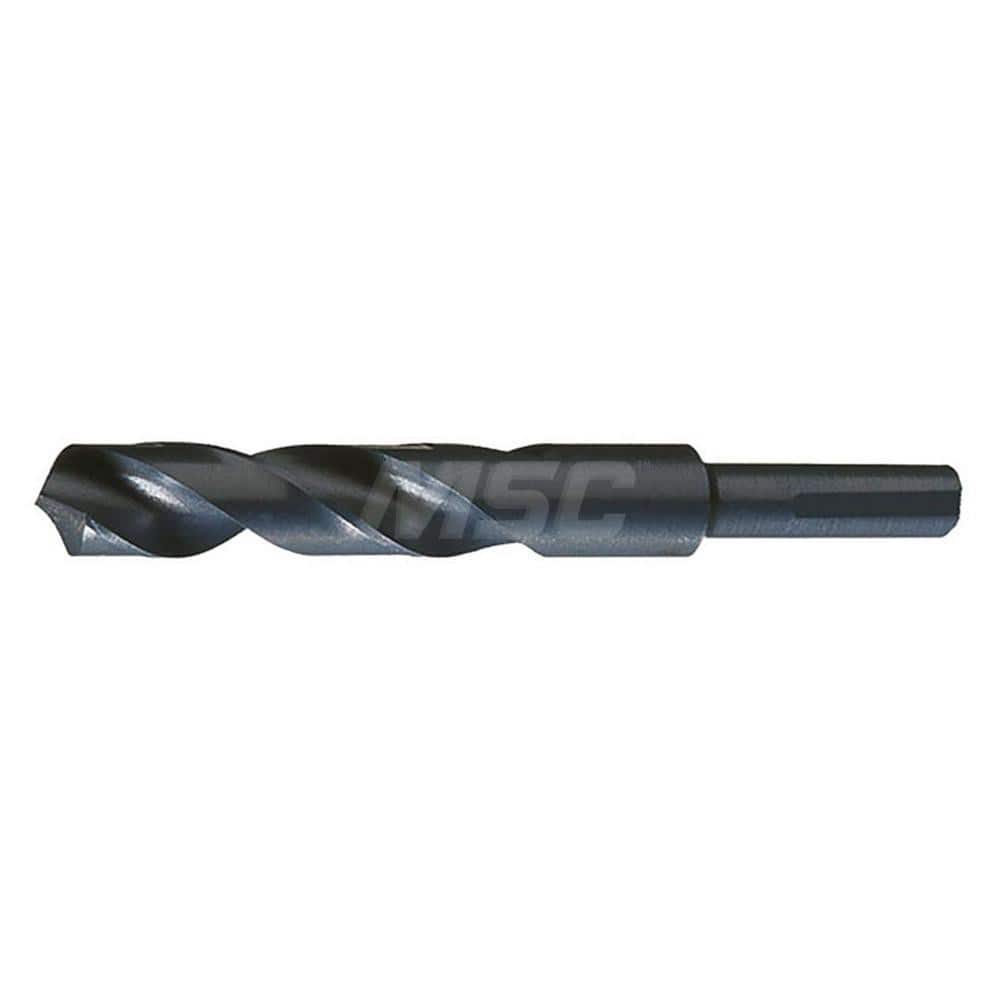

Reduced Shank Drill Bit: 1-13/32'' Dia, 1/2'' Shank Dia, 118 ™, High Speed Steel 6'' OAL, 3-1/8'' Flute Length, Coated Finish, Weldon Shank, RH Cut, Series 190F
Item #: 93076560
Brand: Chicago-Latrobe
Model #: 52490
Product Specifications
| Drill Bit Size (Inch) | 1-13/32 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Tool Material | High Speed Steel |
| Drill Point Angle | 118 |
| Point Type | Standard |
| Shank Type | Weldon |
| Flute Length (Inch) | 3-1/8 |
| Overall Length (Inch) | 6 |
| Coating/Finish | Coated |
| Series | 190F |
| Number Of Flats | 3 |
| Drill Bit Size (Decimal Inch) | 1.4062 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Decimal Inch) | 1/2 |
| Overall Length (Decimal Inch) | 6.0000 |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Spiral Type | Regular |
| Number Of Flutes | 2 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0015 in |
| Tool Performance | General Purpose |
| Tool Application | Portable Drilling |
| Drill Length Type | Reduced Shank |
| Shank Length (Decimal Inch) | 2.2500 |
| Shank Length (mm) | 57.15 |
| Primary Workpiece Material | Wood |
| Secondary Workpiece Material | Wood; Alloy Steel; Cast Iron; Carbon Steel |
| Coolant | No |
