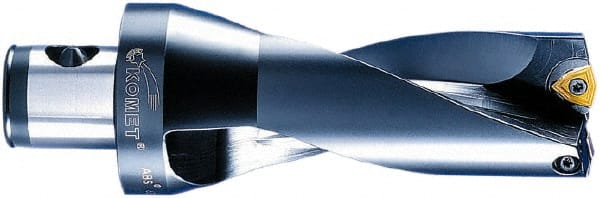

Komet - 6" Max Drill Depth, 3xD, 2" Diam, Indexable Insert Drill - 2 Inserts, ABS 63 Modular Connection Shank
Item #: 93269124
Brand: Komet
Model #: V1375080
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | V13 |
| Drill Diameter (Inch) | 2 |
| Drill Diameter (Decimal Inch) | 2.0000 |
| Maximum Drill Depth (Decimal Inch) | 6.0000 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 63 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.1180 |
| Overall Length/Projection (Decimal Inch) | 8.1660 |
| Insert Compatibility | WOEX 080404 |
| Body Length (Decimal Inch) | 8.1660 |
| Series | KUB |
