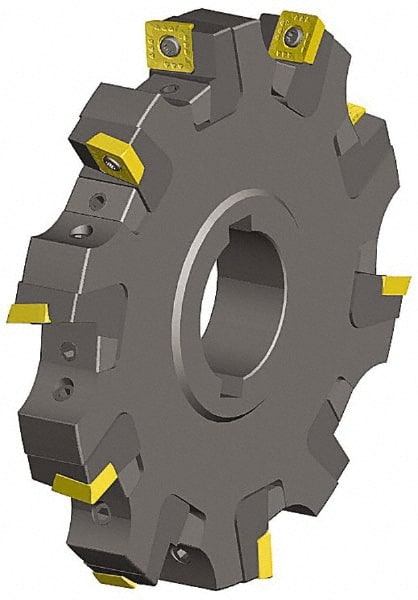

Kennametal - Arbor Hole Connection, 0.461" Cutting Width, 1.851" Depth of Cut, 6" Cutter Diam, 1-1/2" Hole Diam, 12 Tooth Indexable Slotting Cutter - KSSS Toolholder, SDCT, SDCW, SDET, SDPT Insert, Right Hand Cutting Direction
Item #: 93273233
Brand: Kennametal
Model #: 2618969
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.4610 |
| Maximum Depth of Cut (Decimal Inch) | 1.8510 |
| Cutter Diameter (Decimal Inch) | 6.0000 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Number of Teeth | 12 |
| Toolholder Style | KSSS |
| Series | KSSS |
| Insert Style | SDCT; SDCW; SDET; SDPT |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 9400 |
| Minimum Cutting Width (Decimal Inch) | 0.4610 |
| Hub Diameter (Decimal Inch) | 2.2500 |
| Radius | No |
| Rake | Neutral |
| Cutter Body Width (Decimal Inch) | 0.7500 |
| Complete Insert Compatibility2 | SDCT 12; SDCT 120404PDELLD2; SDCT 120404PDERLD2; SDET 120412PDELGB2; SDET 120416SNGB2; SDET 120420SNGB2; SDET 120432SNGB2; SDET 120432XENGB2; SDET 1204PDELGB2; SDET 1204PDSRGB2 |
| Complete Insert Compatibility1 | SDCT 1204PDELLD2; SDET 120412PDERGB2; SDET 120424SNGB2; SDET 120464SNGB2; SDET 1204PDERGB2; SDET 1204PDSLGB2 |
