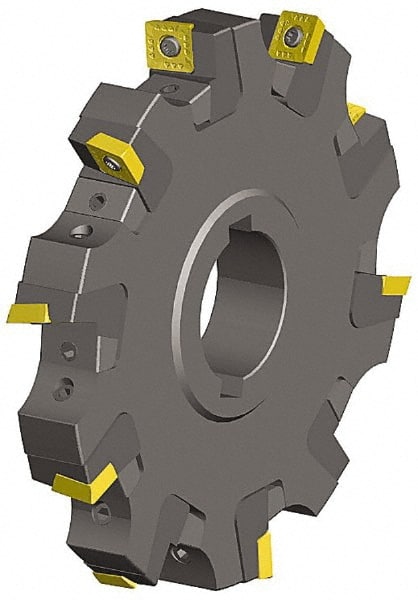

Kennametal - Arbor Hole Connection, 0.739" Cutting Width, 2.542" Depth of Cut, 8" Cutter Diam, 2" Hole Diam, 18 Tooth Indexable Slotting Cutter - KSSS Toolholder, SDCT, SDCW, SDET, SDPT Insert, Neutral Cutting Direction
Item #: 93273399
Brand: Kennametal
Model #: 2629785
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.7390 |
| Maximum Depth of Cut (Decimal Inch) | 2.5420 |
| Cutter Diameter (Decimal Inch) | 8.0000 |
| Hole Diameter (Decimal Inch) | 2.0000 |
| Number of Teeth | 18 |
| Toolholder Style | KSSS |
| Series | KSSS |
| Insert Style | SDCT; SDCW; SDET; SDPT |
| Number of Cutter Inserts | 18 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 8150 |
| Minimum Cutting Width (Decimal Inch) | 0.7390 |
| Hub Diameter (Decimal Inch) | 2.8800 |
| Radius | No |
| Rake | Neutral |
| Cutter Body Width (Decimal Inch) | 0.6660 |
| Complete Insert Compatibility2 | SDCT 12; SDCT 120404PDERLD2; SDCT 1204PDELLD2; SDET 120412PDERGB2; SDET 120416SNGB2; SDET 120420SNGB2; SDET 120424SNGB2; SDET 120432XENGB2; SDET 1204PDSLGB2; SDET 1204PDSRGB2 |
| Complete Insert Compatibility1 | SDCT 120404PDELLD2; SDET 120412PDELGB2; SDET 120432SNGB2; SDET 120464SNGB2; SDET 1204PDELGB2; SDET 1204PDERGB2 |
