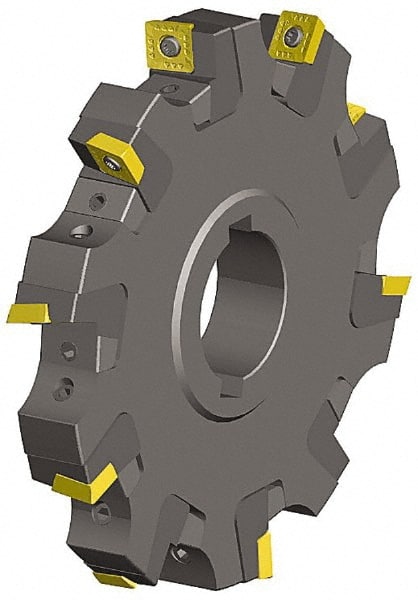

Kennametal - Arbor Hole Connection, 0.614" Cutting Width, 1.357" Depth of Cut, 5" Cutter Diam, 1-1/2" Hole Diam, 12 Tooth Indexable Slotting Cutter - KSSS Toolholder, SPCT, SPET, SPPT Insert, Neutral Cutting Direction
Item #: 93273472
Brand: Kennametal
Model #: 2629794
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.6140 |
| Maximum Depth of Cut (Decimal Inch) | 1.3570 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Number of Teeth | 12 |
| Toolholder Style | KSSS |
| Series | KSSS |
| Insert Style | SPCT; SPET; SPPT |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 15300 |
| Minimum Cutting Width (Decimal Inch) | 0.6140 |
| Hub Diameter (Decimal Inch) | 2.2500 |
| Radius | No |
| Rake | Neutral |
| Cutter Body Width (Decimal Inch) | 0.5420 |
| Complete Insert Compatibility2 | SPCT 10; SPCT 10T304PPELLD2; SPCT 10T304PPERLD2; SPCT 10T312PPELLD2; SPCT 10T312PPERLD2; SPCT 10T312PPFLLE; SPCT 10T320ENLD2; SPCT 10T3PPELLD2; SPCT 10T3PPERLD2; SPCT 10T3PPFLLE |
| Complete Insert Compatibility1 | SPCT 10T304PPFLLE; SPCT 10T304PPFRLE; SPCT 10T312PPFRLE; SPCT 10T316ENLD2; SPCT 10T316FNLE; SPCT 10T3PPFRLE |
