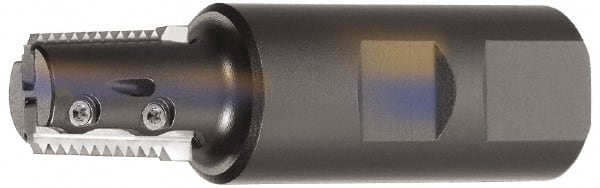

Kennametal - 1.1" Cut Diam, 1.7" Max Depth of Cut, 1" Shank Diam, Internal/External Indexable Thread Mill - Insert Style TM25..T, 4 Inserts, Toolholder Style TMT, 4.06" OAL
Item #: 93273621
Brand: Kennametal
Model #: 3031715
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.1000 |
| Maximum Hole Depth (Decimal Inch) | 1.7000 |
| Insert Style | TM25..T |
| Toolholder Style | TMT |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 4.0600 |
| Number of Threading Inserts | 4 |
| Thread Type | Internal/External |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Number of Flutes | 4 |
| Neck Diameter (Decimal Inch) | 1.1000 |
