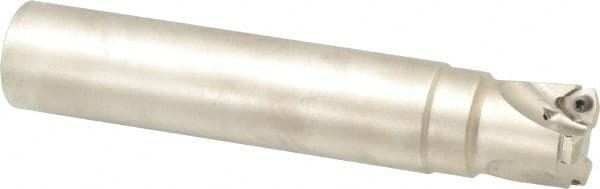

Seco - 1-1/2" Cut Diam, 0.08" Max Depth, 1-1/2" Shank Diam, Cylindrical Shank Indexable High-Feed End Mill - Screw Holding Method, 218.19-160.. Insert, R217.21 Toolholder, Through Coolant
Item #: 93275329
Brand: Seco
Model #: 30183
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0800 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Cutter Inserts | 3 |
| Insert Style | 218.19-160.. |
| Toolholder Style | R217.21 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | End Mill |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (Decimal Inch) | 0.8500 |
| Maximum RPM | 17600 |
| Through Coolant | Through Coolant |
| Maximum Cutting Diameter (Decimal Inch) | 1.5000 |
| Overall Length (Decimal Inch) | 8.0000 |
