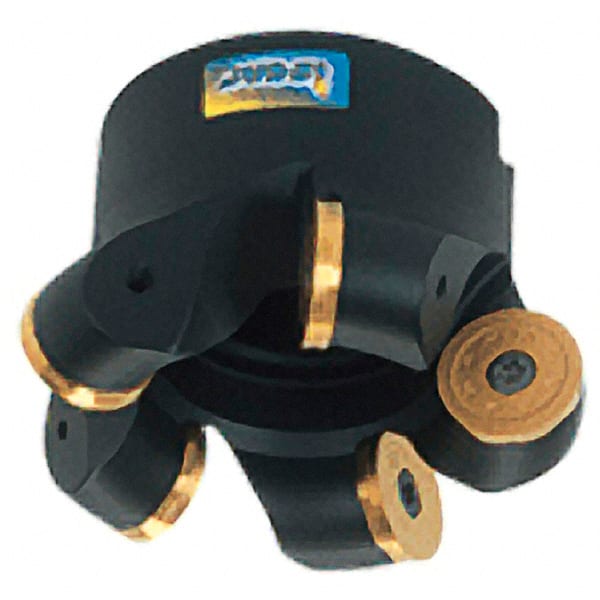

Iscar - 36mm Cut Diam, 8mm Max Depth, 22mm Arbor Hole, 4 Inserts, RC.W Insert Style, Indexable Copy Face Mill - FR Cutter Style, 50mm High, Series RoundMill
Item #: 93341766
Brand: Iscar
Model #: 3102607
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 36.00 |
| Cutting Diameter (Decimal Inch) | 1.4173 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | RoundMill |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | RC.W |
| Cutter Style | FR |
| Through Coolant | No |
| Insert Holding Method | Screw |
| Keyway Width (Decimal Inch) | 0.4094 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | RCCW 1605; RCCW 1605-T; RCMW 1605H-T |
