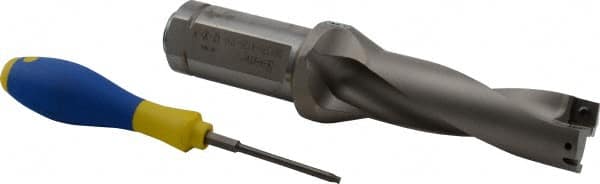

Iscar - 4.13" Max Drill Depth, 3xD, 1-3/8" Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Straight Shank
Item #: 93349728
Brand: Iscar
Model #: 3201849
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (Inch) | 1-3/8 |
| Drill Diameter (Decimal Inch) | 1.3750 |
| Maximum Drill Depth (Decimal Inch) | 4.1300 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.5720 |
| Body Length (Decimal Inch) | 5.4200 |
| Shank Length (Decimal Inch) | 3.0000 |
| Series | DR-TWIST |
